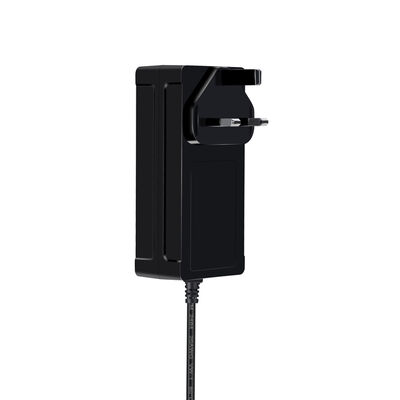

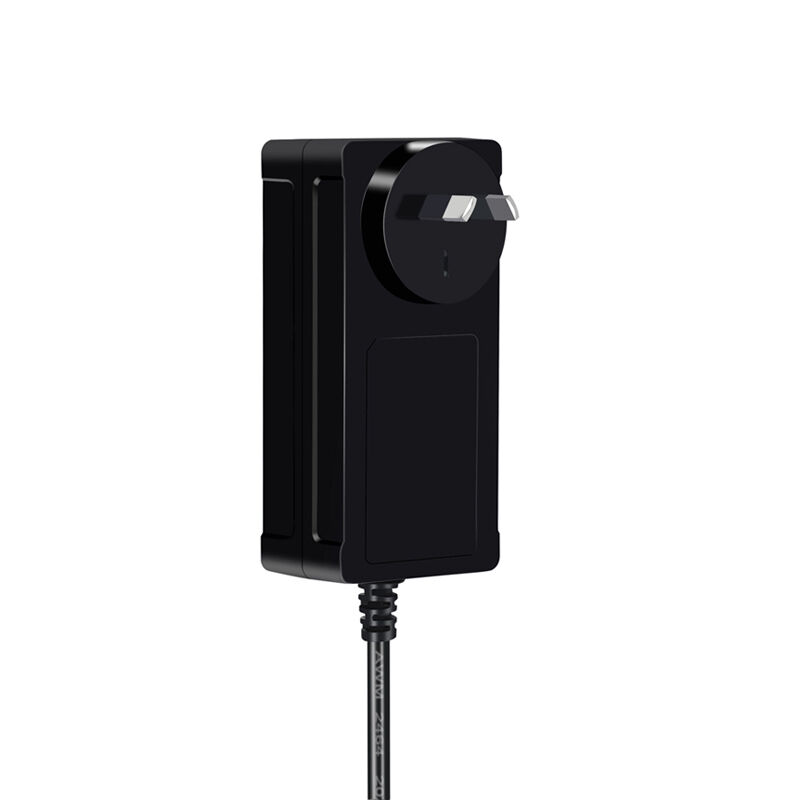

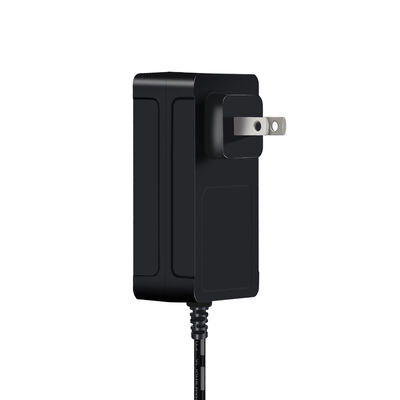

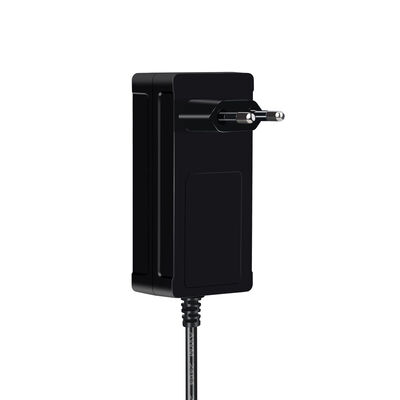

72W Max UL CE Certified Wall Plug Power Brick with 3 Years Warranty

Brand Name:	KSPOWER
Model Number:	KS75DU-xxxyyyy
MOQ:	1 pieces
Price:	$4.16-$4.98/pieces
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc

Output Type:

Connection:

Plug In

Output:

9V12V15V19V20V24V36V48V

Input:

AC 100-240v 50-60hz

Certificate:

UL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS EPR

Color:

White Black Customized

Efficiency:

DOE VI, CEC VI

Warranty:

3 Years

AC Plug:

UK US AU EU CN KR JP

Application:

Purifier Pump, LED Strips, Audio Amplifiers, Wireless Routers,etc

Packaging Details:

Small box and Carton

Highlight:

Wall Mounted 12V 1A Power Adapter

Coffee Maker 12V 1A Power Adapter

Water Purifier Pump 12v 1a power supply

Product Description

72W Max Wall Plug Power Brick

High-performance 72W wall plug power adapter designed for reliable operation across multiple regions and applications.

Technical Specifications

Output Mode: Constant voltage modes
Input: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, current, and voltage protection
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Working Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	72W	DC5-36V	0.01A-5.0A	EN62368/UL 1310
EU	72W	DC5-36V	0.01A-5.0A	EN62368
UK	72W	DC5-36V	0.01A-5.0A	EN62368
AU	72W	DC5-36V	0.01A-5.0A	EN62368
KR	72W	DC5-36V	0.01A-5.0A	EN62368
JP	72W	DC5-36V	0.01A-5.0A	EN62368
CN	72W	DC5-36V	0.01A-5.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel & Constant Voltage power supply
100% Full load burn-in test
Pass LPS (limited power source)
3 Years Warranty
Class II power (without earth pin)
Compact size, fully enclosed PC plastic case
Starting time: <3 s
Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI

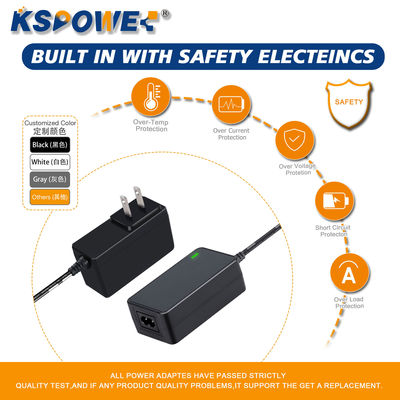

Safety automatic protections for over current, over load and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and others

Available DC Plugs

5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/Cigarette lighter etc (Customizable)

Applications

The AC adapter is suitable for electric grill oven, LED strips, audio amplifiers, wireless routers, audio and video power supplies, etc. Not waterproof, indoor use only.

Customization Services

We provide OEM and ODM services with custom labeling, packaging, and case options available.
