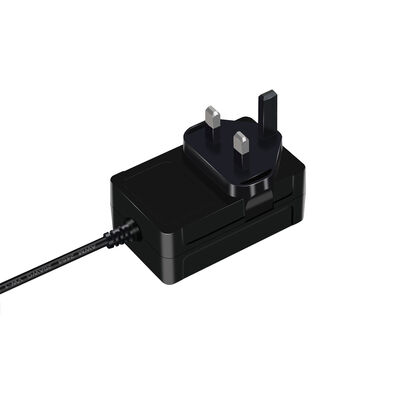

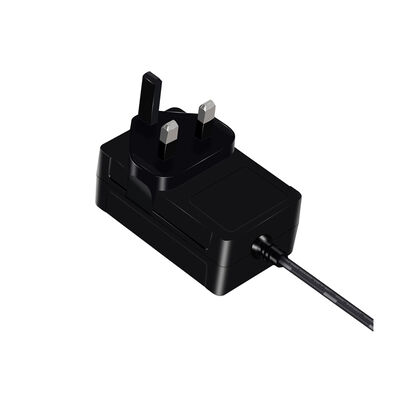

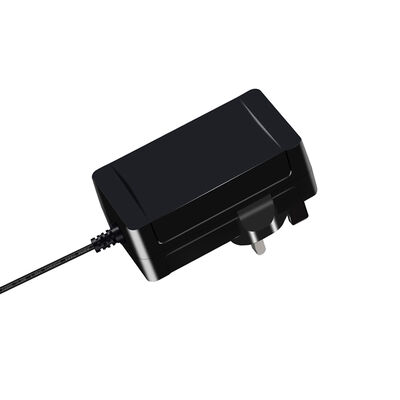

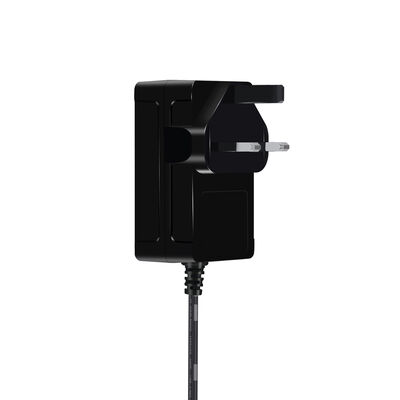

30W UKCA Certified Single Phase Wall Power Adapter with Multiple Output Voltages

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1 pieces
Price:	$2.68-$2.96/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL /CE/GS/SAA/KC/CB/FCC/C-TICK/PAHS/ROHS

Output Type:

Single Phase

Output Voltage:

5v 6v 8v 9v 10v 12v 14v 15v 18v 19v 20v 24v 36v 48v

Input:

AC 100-240v 50-60hz

Certificate:

UL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS EPR

Color:

White Black Customized

Type:

Wall Mounted

Efficiency:

DOE VI, CEC VI

AC Plug:

UK US AU EU CN KR JP

Application:

Electric Curtain, LED Strips, Audio Amplifiers, Wireless Routers,etc

Packaging Details:

Small box and Carton

Highlight:

24V 1A Wall Power Adapter

Electric Curtain Wall Power Adapter

Constant Voltage Single Phase Adapter

Product Description

30W UKCA Certified Wall Power Adapter

Professional 30W UKCA certified wall power adapter designed for reliable performance across various electronic applications.

Technical Specifications

Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-4A, 48W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	48W	DC5-36V	0.01A-4.0A	EN62368/UL 1310
EU	48W	DC5-36V	0.01A-4.0A	EN62368
UK	48W	DC5-36V	0.01A-4.0A	EN62368
AU	48W	DC5-36V	0.01A-4.0A	EN62368
KR	48W	DC5-36V	0.01A-4.0A	EN62368
JP	48W	DC5-36V	0.01A-4.0A	EN62368
CN	48W	DC5-36V	0.01A-4.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)
Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

Available DC Connectors

5.5*2.1mm
5.5*2.5mm
4.0*1.7mm
3.5*1.35mm
2.5*0.7mm
XLR
Cigarette lighter
Other customizable options

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.

Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
