24W White Color IP20 Plastic LED Driver with Constant Voltage for Indoor Lighting

Brand Name:	KSPOWER
Model Number:	ZF120A-xxxyyyy
MOQ:	1 pieces
Price:	$3.42-$3.96/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL/cUL FCC CE RoHS Cert.

Warranty(Year):

2-Years

Output Power:

24W

Output Type:

Single Phase

Input Voltage:

100-240 VAC

Output Frequency:

50Hz~60Hz

Efficiency:

≥ 88%

IP Rank:

IP20

Protections:

Short Circuit, Overload, Over Voltage, Over Temperature

Material:

Plastic Case

Warranty:

2 Years

Application:

LED Lighting, Celling Light Etc

Packaging Details:

Small box and Carton

Highlight:

Single Phase Plastic LED Driver

Output Type LED Strip Light Driver

2000mA Output LED Strip Dimmable Driver

Product Description

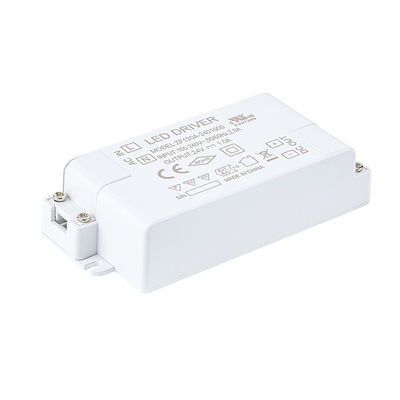

24W White Color Constant Voltage LED Driver

Product Overview

P Series Constant Voltage LED Drivers with 12V, 24V, 36V, and 48V output options. Non-dimming functionality with universal AC input voltage range of 100VAC to 240VAC.

Product Features

Constant voltage design
Rectangular plastic case with IP20 protection level
Universal AC input / Full range compatibility

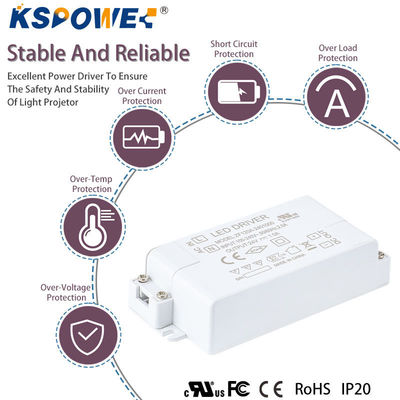

Comprehensive protections: Short circuit, Over voltage, Over current
Class II power design (without earth pin)
Ideal for indoor LED lighting and moving sign applications
1 year manufacturer warranty

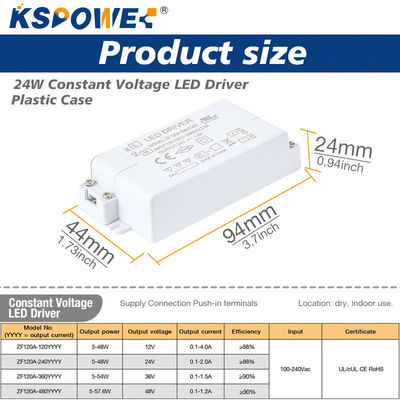

Technical Specifications

Output Voltage	12V / 24V / 36V / 48V
Color	White
Input Voltage	110-240V AC ±10% 47-63Hz
Output Type	DC Single Output
Working Environment	0℃-40℃ (0%-90% RH)
Storage Environment	-20℃-60℃ (0%-90% RH)
Load Regulation	±5%
RoHS Compliant	Yes
Ripple & Noise (max)	< 150mVp-p
Safety Approvals	UL/cUL 8750, CE, and international safety regulations
