12W UL Certified Wall Power Adapter with 3-Year Warranty for Wi-Fi Routers and LED Lights

Brand Name:	KSPOWER
Model Number:	KS39DU-xxxyyyy
MOQ:	1piece
Price:	$1.86-$2.35/piece
Payment Terms:	T/T
Supply Ability:	300000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

UL cUL FCC CE GS KC PSE SAA RoHS CB UKCA etc

Connection:

Plug In

Output:

9V12V15V19V20V24V36V48V

Input:

AC 100-240v 50-60hz

DC Plug:

5.5*2.1/5.5*2.5 Or Custom

Certificate:

UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS

Color:

White Black Customized

Material:

100% PC

Warranty:

3 Years

Protectio:

OCP OVP OTP SCP

Application:

LED Strip Light, Led Screen, Christmas Led Light,etc.

Packaging Details:

Small box and Carton

Highlight:

12V 1.25A International Wall Adapter

LED Strip International Wall Adapter

LED Strip Light Universal Wall Adapter

Product Description

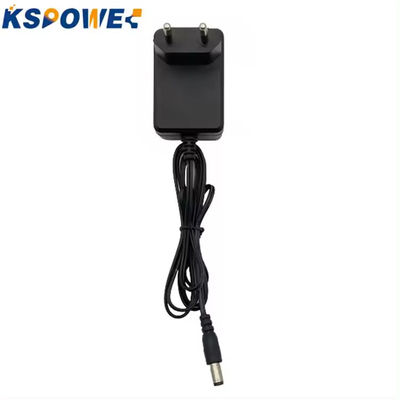

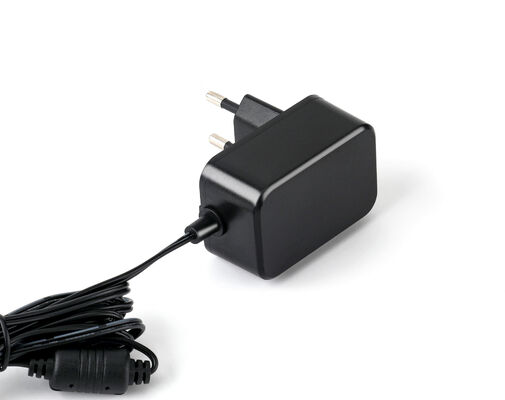

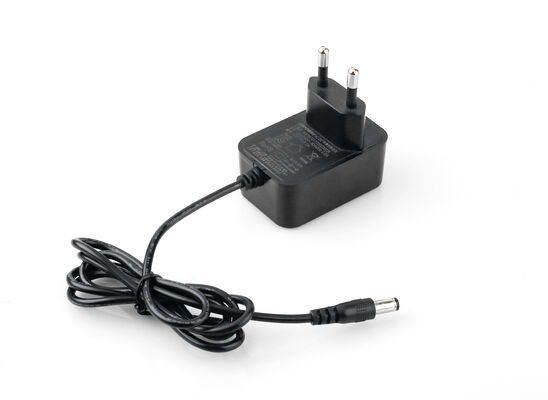

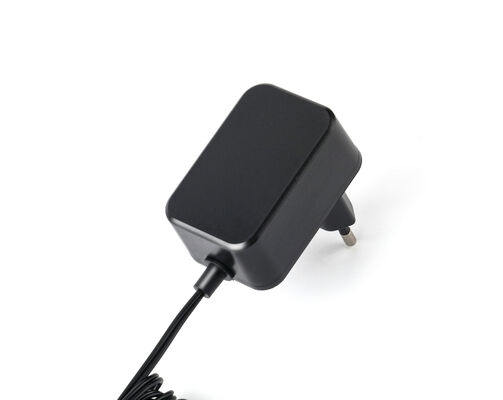

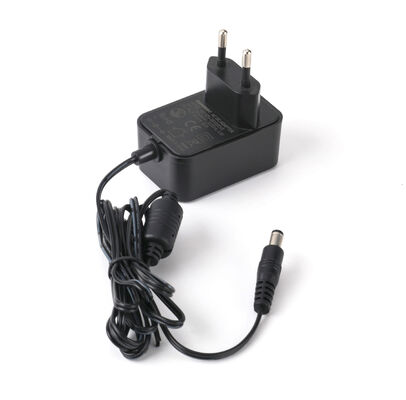

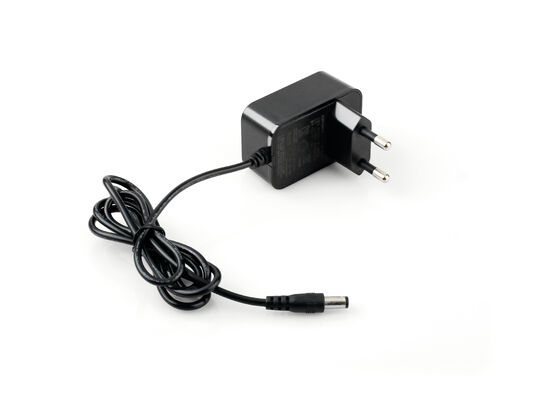

12W Wi-Fi Router Wall Adapter

Professional 12W Wi-Fi Router Wall Adapter designed for reliable power delivery to networking equipment and electronic devices.

Technical Specifications

Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB

Regional Specifications

Country	Max. Watt	Voltage Range	Current Range	Safety Standard
US	24W	DC5-36V	0.01A-3.0A	EN62368/UL 1310
EU	24W	DC5-36V	0.01A-3.0A	EN62368
UK	24W	DC5-36V	0.01A-3.0A	EN62368
AU	24W	DC5-36V	0.01A-3.0A	EN62368
KR	24W	DC5-36V	0.01A-3.0A	EN62368
JP	24W	DC5-36V	0.01A-3.0A	EN62368
CN	24W	DC5-36V	0.01A-3.0A	CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020

Key Features

Single channel constant voltage power supply
100% full load burn-in testing
Passes LPS (limited power source) requirements
3-year comprehensive warranty
Class II power design (without earth pin)
Compact size with fully enclosed PC plastic case
Fast startup time: <3 seconds
High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
Automatic safety protections for over current, over load, and short circuit

Compatible AC Plugs

US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards

Available DC Connectors

5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, 2.5*0.7mm, XLR, Cigarette lighter, and other customizable options

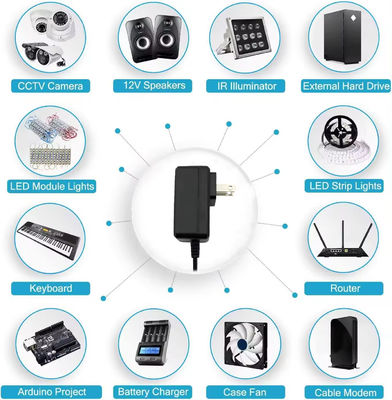

Applications

Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies. Not waterproof - indoor use only.

Customization Services

We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
